Water Tunnel

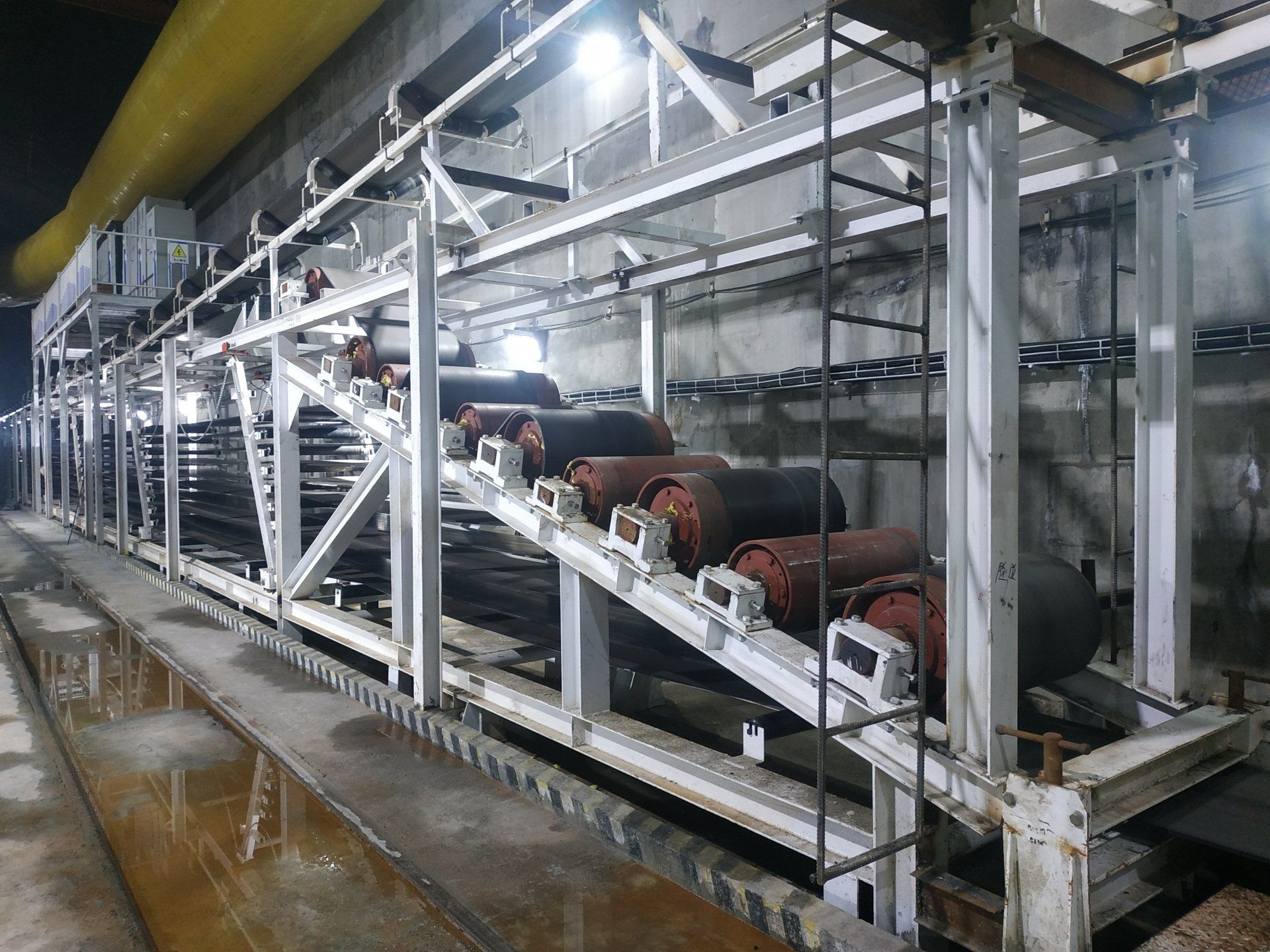

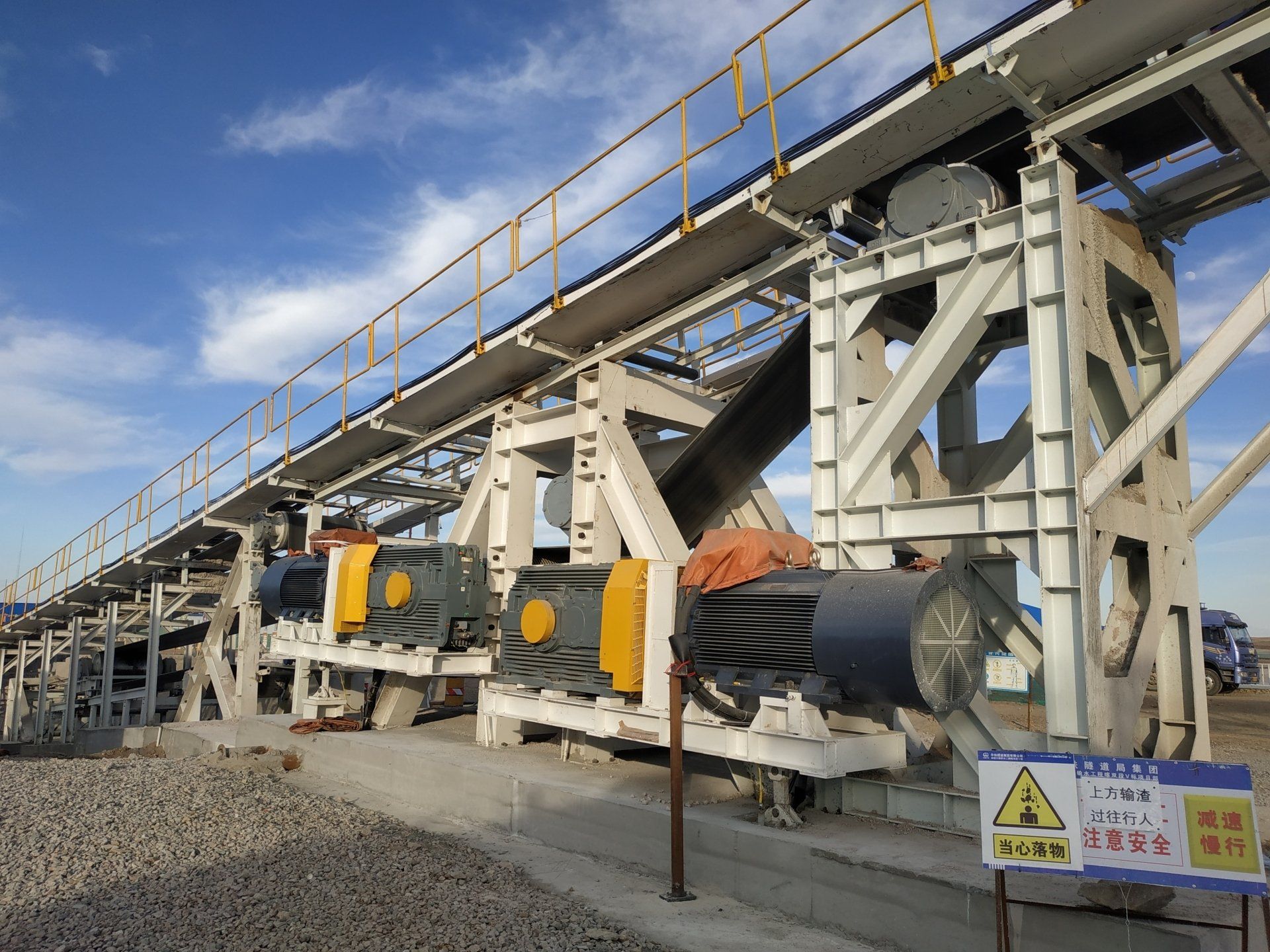

CREG belt conveyor system was successfully applied in a 15.35km tunnel excavated by conventional Drill and Blast method in Irtysh River Diversion Project, Xinjiang, China. This belt conveyor is powered by head and middle drives and equipped with a double tension system.

Data:

• Tunnel diameter: 7.08m
• Excavated material: Soft rock and sand
• Belt length: 18km
• Belt width: 800mm
• Belt strength: ST1600
• Delivery rate: 630t/h
• Power installed: 3x315kW+2x300kW
• Installation: 2017
