Metro/Light rail tunnel

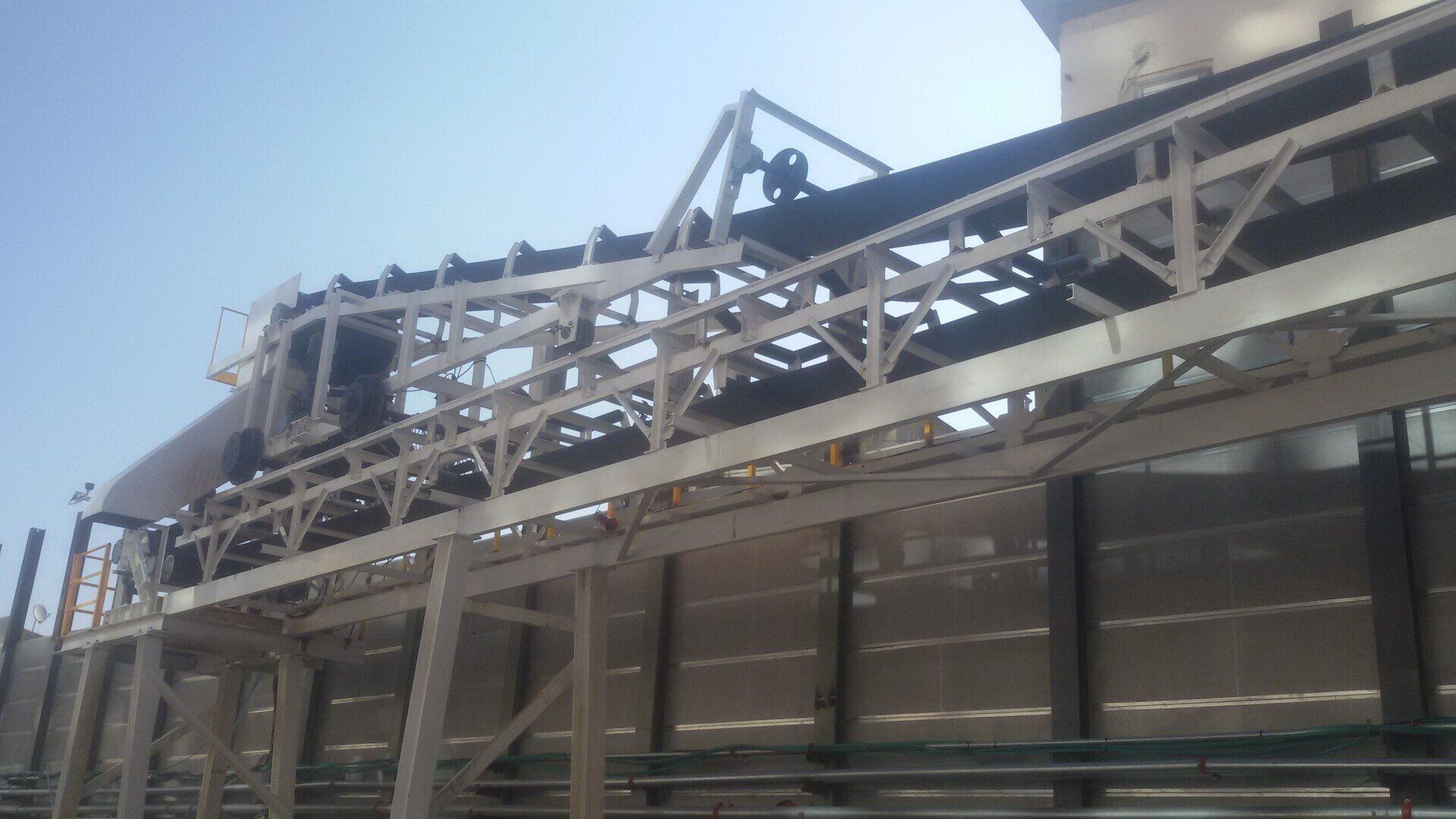

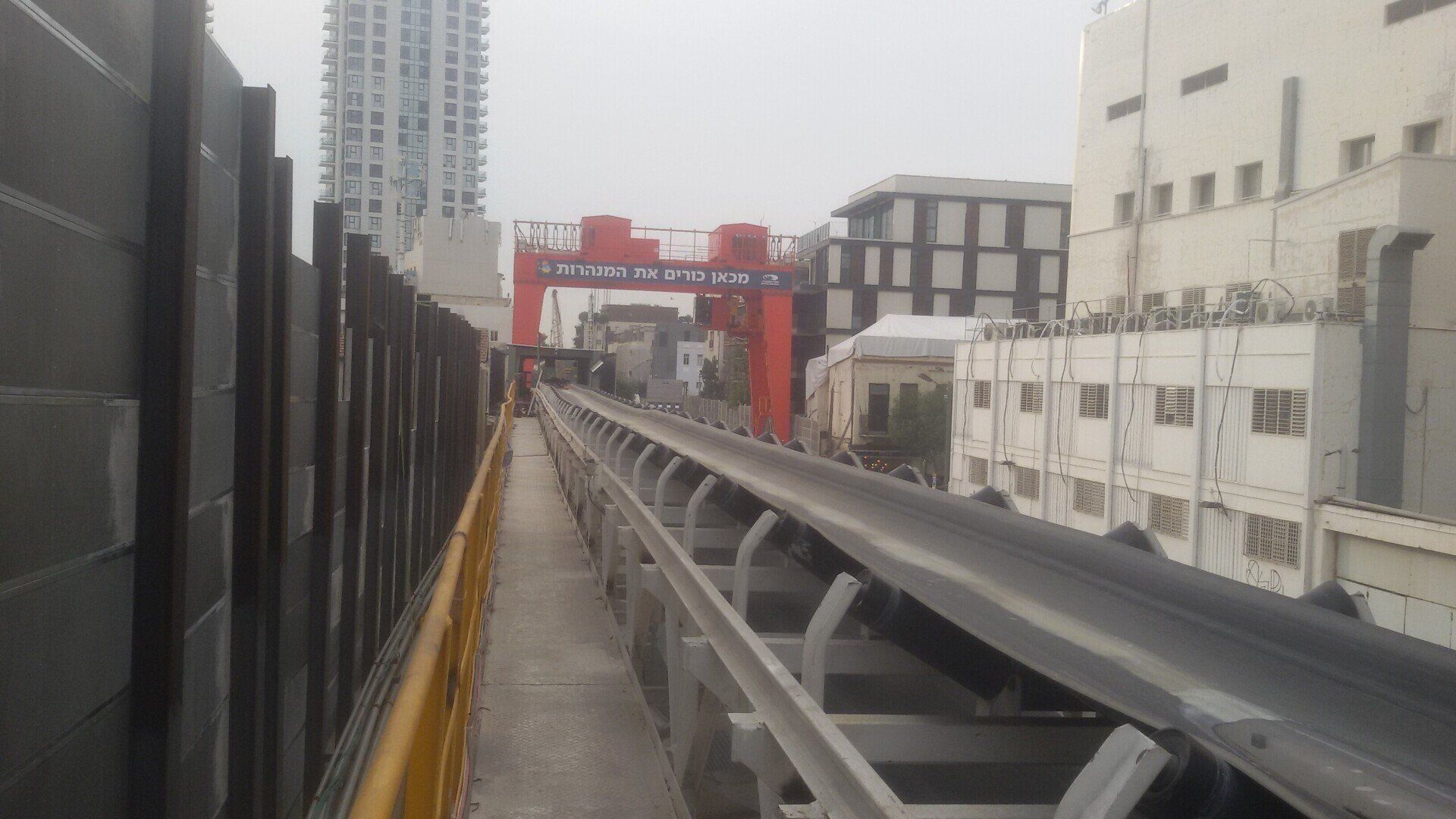

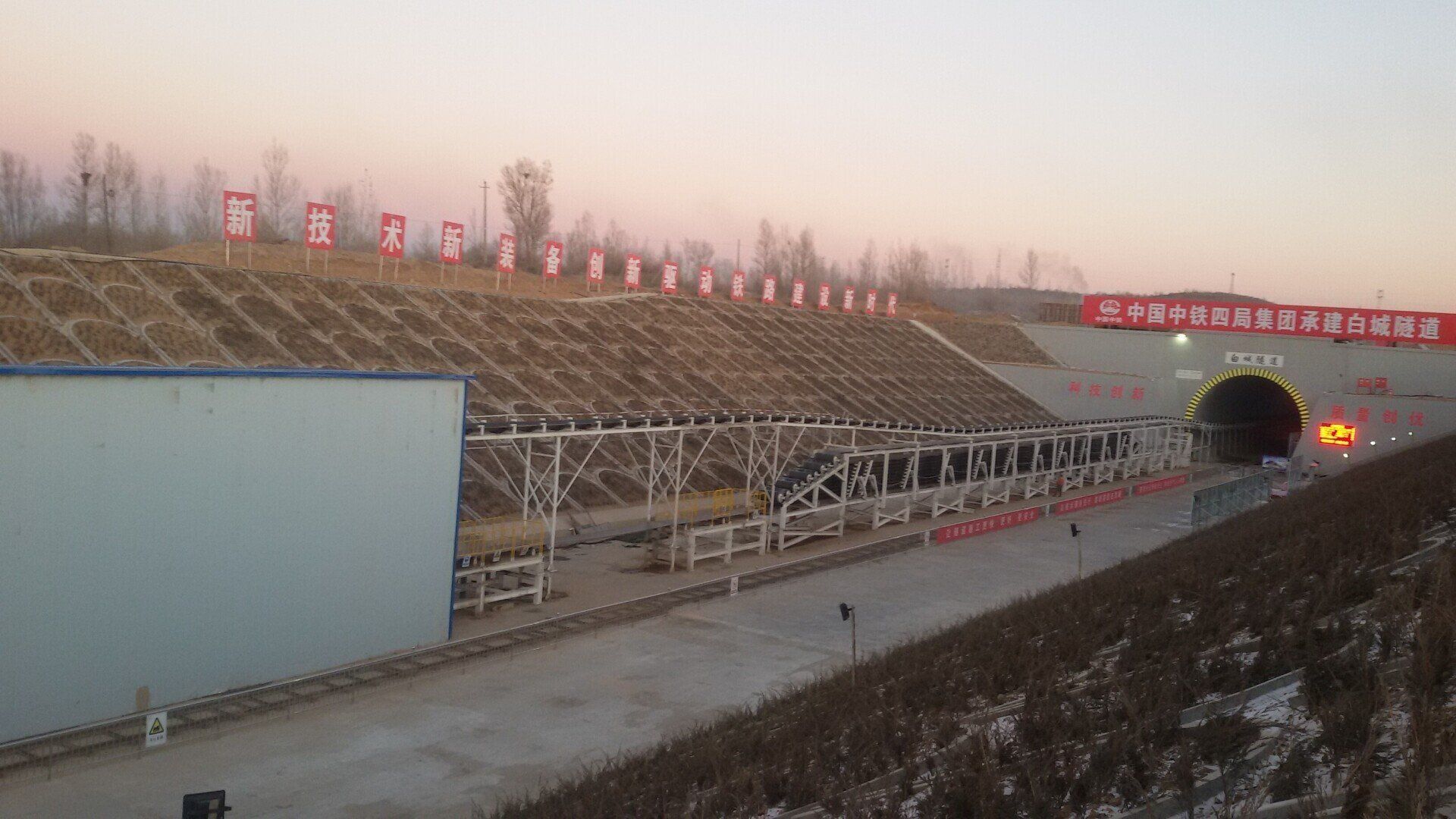

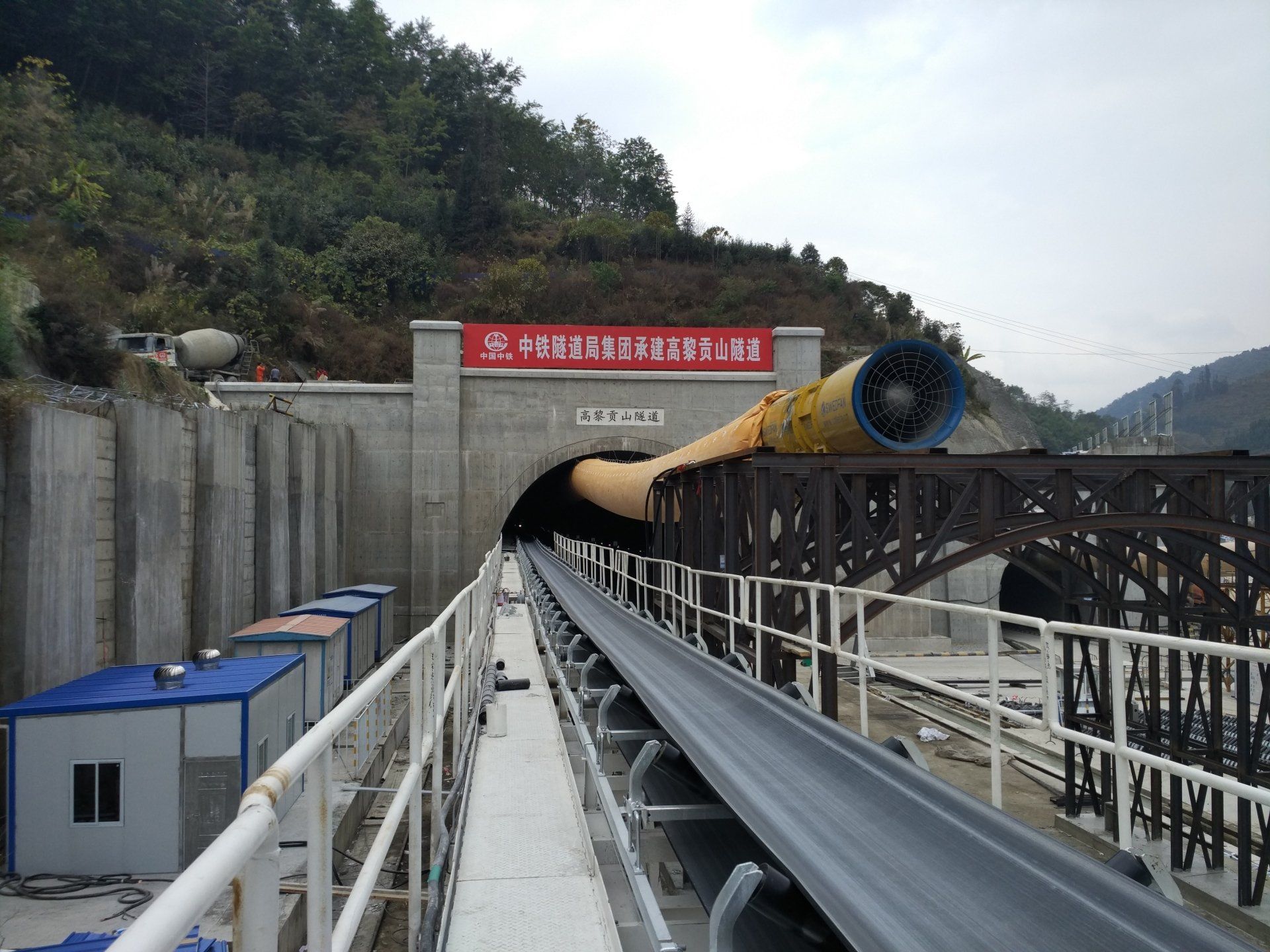

In the Tel Avivi Metropolitan Area Mass Transit System, 6 specifically designed EPBMs from CREG were used to excavate the 11km Red Line tunnel. In order to keep pace with tunneling and realize the full potential of the EPBMs, CREG continuous horizontal and vertical conveyor systems were tailor-made and seamlessly combined to deliver the best mucking-out capacity.

With around 45% of the national population, the growing metropolis of Tel Aviv at the center of Israel’s largest urban area, Gush Dan, is considered a rail-based mass transit system. The planned 44km mass transit system consists of 33 stations, ten underground, with an average distance between them of just 500m, and an average of 1km between stations at ground level. Red Line, the western section of Tel Avivi Light Rail, includes two parallel 5.5km tunnels and six underground stations.

Data:

• Tunnel diameter: 6.5m
• Min. radius: 220m
• Excavated material: EPB
• TBM supplier: CREG

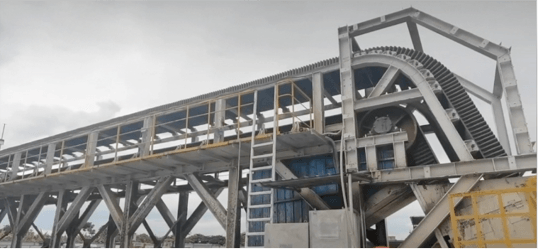

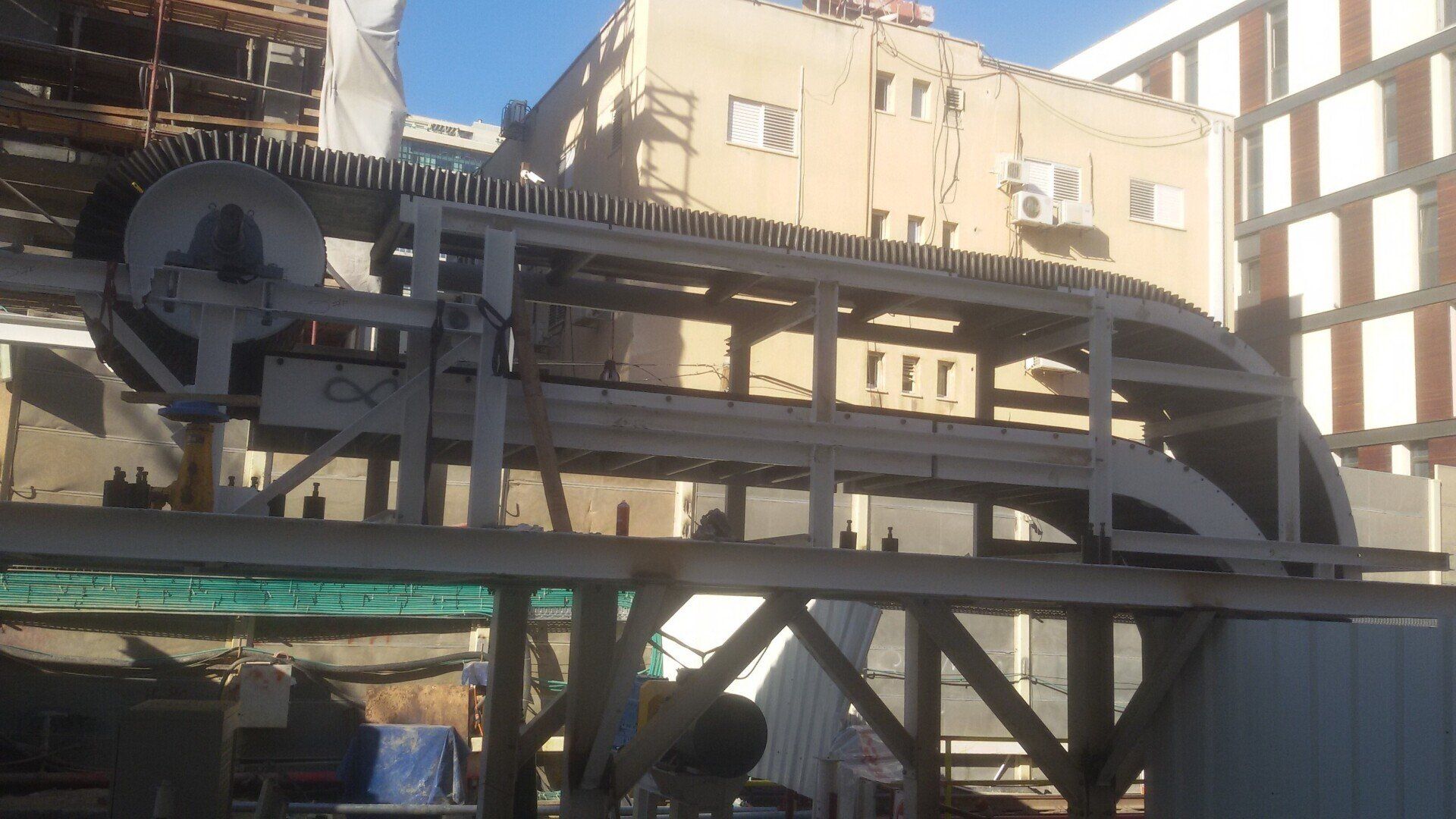

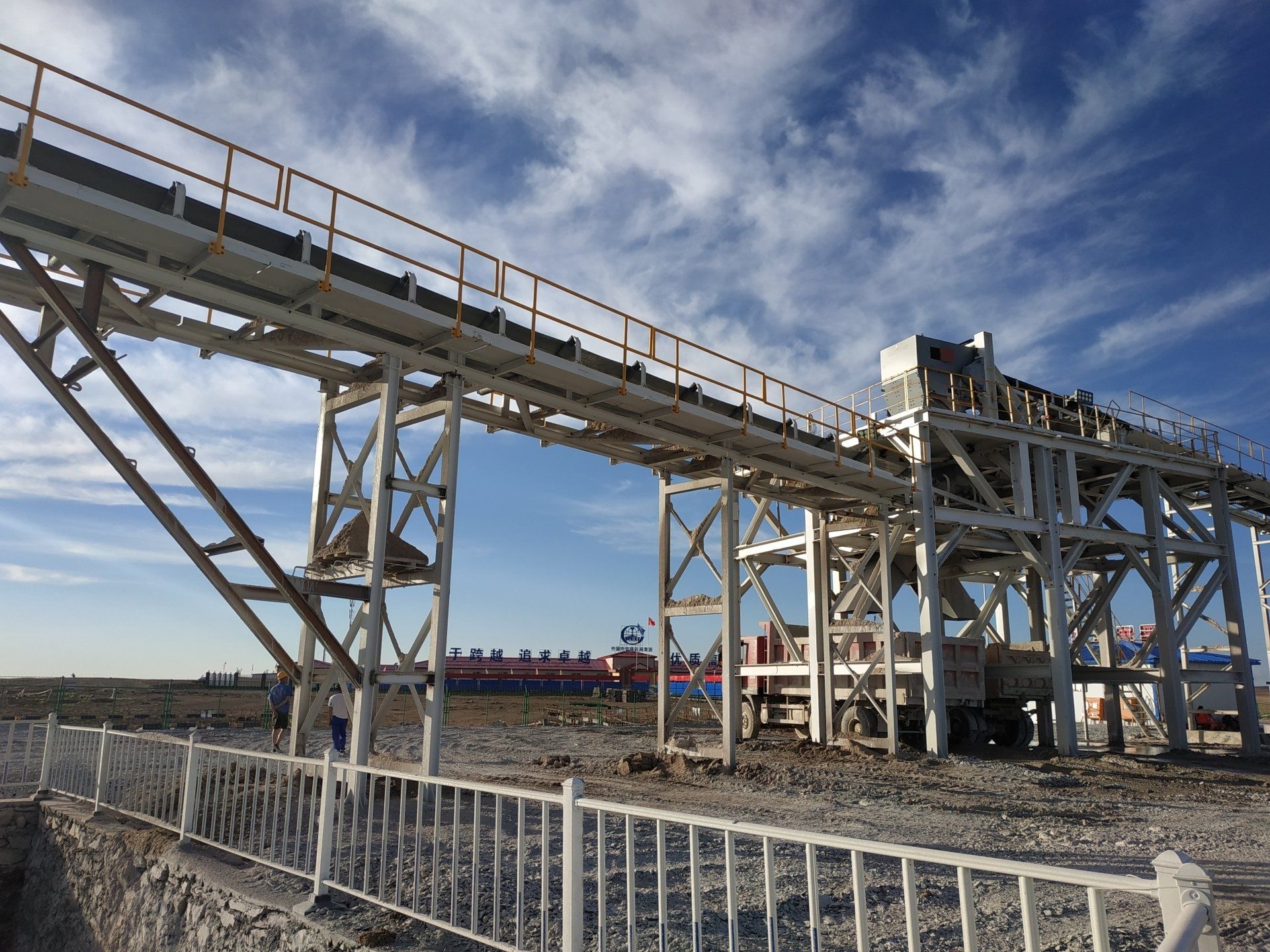

• Tunnel belt length: Horizontal belt 1.2km + Vertical belt 21m
• Belt width: Horizontal belt 710mm + Vertical belt 1200mm
• Belt strength: Horizontal belt ST630 + Vertical belt ST800
• Delivery rate: Horizontal belt conveyor 300t/h + Vertical belt conveyor 500t/h
• Power installed: Horizontal belt conveyor 1x132kW + Vertical belt conveyor 1x55kW
• Belt storage capacity:
• Installation: 2017
